R&D Test Standard

Super-high brightness, long lifetime ,soft light

The full-color outdoor SMD LED for high-end customers produced by Jointec, the comprehensive test data can reach the high moisture-proof grade of US Jedec standard.

LED Single Lamp Sampling

LED Reliability Test

Aging Test

Anti-UV Test

Reliability Test

LED Reliability Test (22 pieces LEDs)
① Temperature 85℃ and humidity 85%RH 168 hours storage, “0” failure.;
② Reflow soldering the samples at the max temperature 260 for 3 times, “0” failure.;
③ Outdoor samples -65℃ ~ +150℃ temperature cycling test 1000 times “0” failure;
Indoor samples -40℃ ~ +120℃ temperature cycling test 500 times “0” failure.

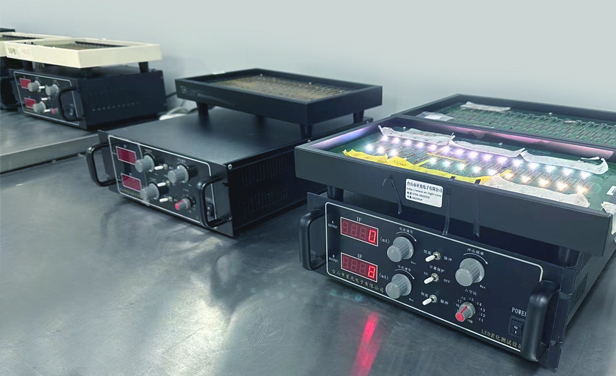

Aging Test

Aging Test (22 pieces LEDs)
Lighting the LEDs for 1000 hours at temperature 25°C, humidity 50% RH, and IF=15mA resulted in a brightness attenuation of ≤5%.

Anti-UV Test

Anti-UV Test (22 pieces LEDs)
According to GB/T 16422.2-1999, irradiate the samples by a light intensity 0.55KW/m² halogen lamp at the condition of temperature 63℃, humidity 50%RH for 500 hours, the result is a brightness attenuation of≤10%.

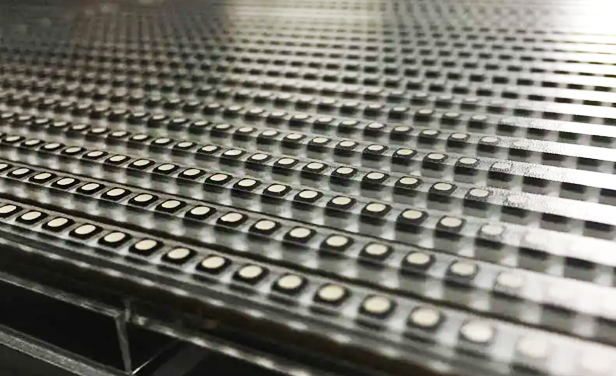

LED Module

Salt Spray Test

SMT Soldering Test

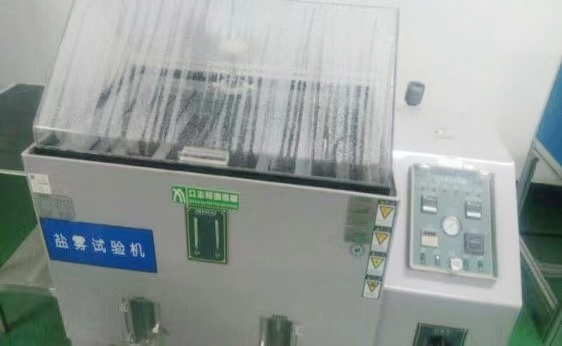

Salt Spray Test

Salt Spray Test (Sample number: 1pcs module)
Spray the LED Module with 5% Nacl2 salt solution for 500 hours, solution PH 6.5-7.2, at temperature 35℃, sedimentation rate in 1-3ml/80cm²/H, settlement in 1-2ml/80cm²/H, result no LED dead.

SMT Soldering Test

SMT Soldering Test (Sample number: 1pcs module)
① Temperature 85℃ and humidity 85%RH 24 hours storage, “0” failure.
② Reflow soldering the samples at the max temperature 240℃ 3 times, “0” failure.
③ -65℃ ~+150℃ temperature cycling test 500 times, “0” failure.

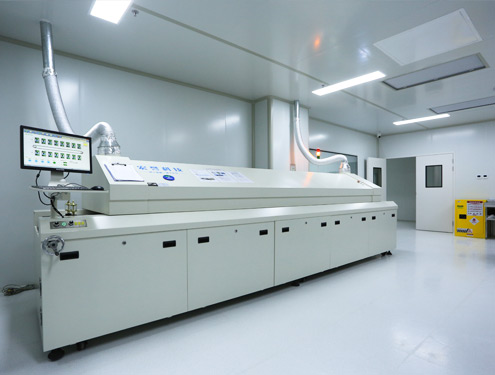

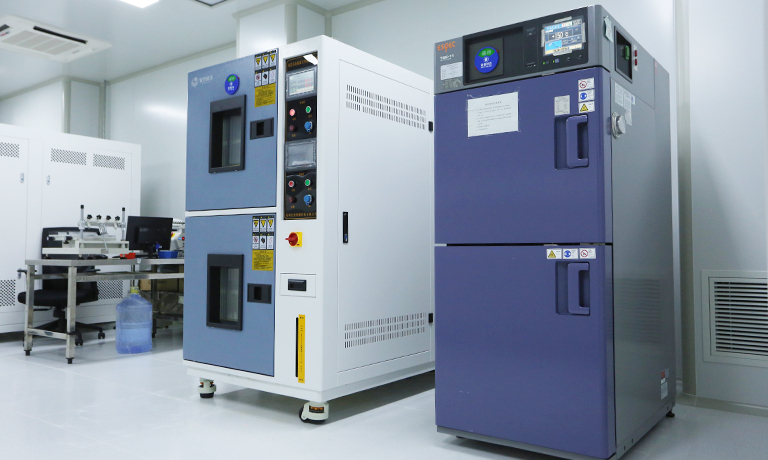

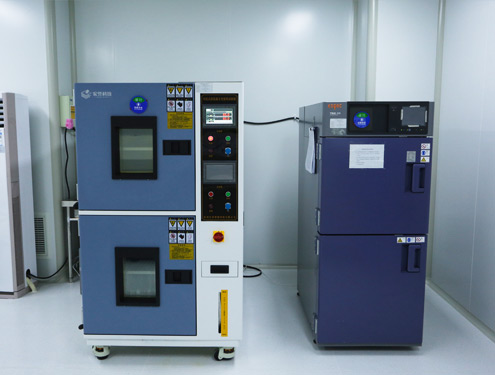

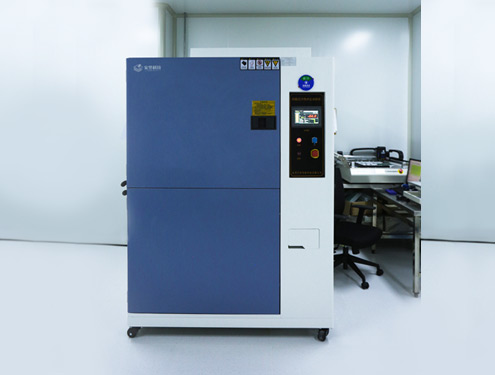

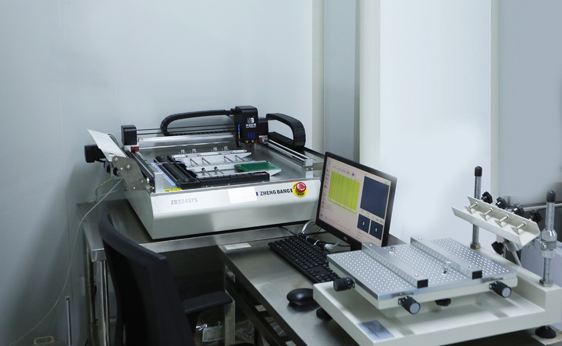

Reliability Test Equipment
