3535OBHC

JT-S3535OBHC

PDF Download

Product Features

• Long life time, high moisture resistance, high water resistance, UV resistance;
• Matte surface technology, unique surface luminous, soft light, glare problem solved;
• Black body design improves the contrast and display performance;
• Flat surface, wide angle, good consistency.

Product Application

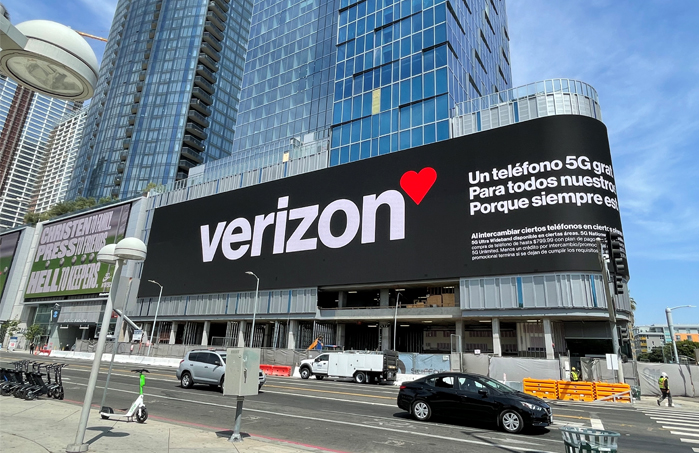

• Suitable for all outdoor P8 and above spacing high contrast full-color LED displays.

Product Parameters

Product Models	Color	Brightness			Wave Length		Forward Voltage	Current	Reverse Voltage
Product Type	Color	Range	Typical Parameter	Binning	Range	Binning Range	VF	IF	VR
Product Type	Color	MIN-MAX(mcd)	TYP Data	Range	MIN-MAX(nm)	(nm)	MIN-MAX(V)	TYP(mA)	TYP(V)
JT-S3535OBHC		460-736	580	1.3	615-625	5	1.6-2.5	20	10
		1000-1600	1150	1.3	517-530	3	2.2-3.6	20	10
		230-390	290	1.3	465-478	3	2.2-3.6	20	10
