2727OBHC

JT-S2727OBHC

PDF Download

Product Features

• Long life time, high moisture resistance, high water resistance, UV resistance;
• Matte surface technology, unique surface luminous, soft light, glare problem solved;
• Black body design improves the contrast and display performance;
• Flat surface, wide angle, good consistency.

Product Application

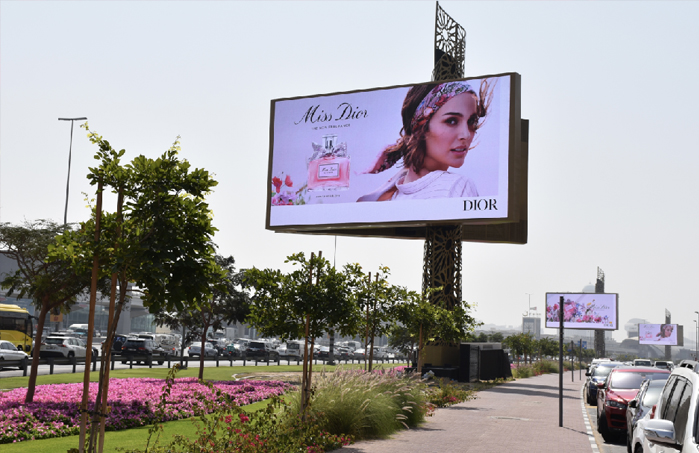

• Suitable for outdoor P6-P8 full-color LED display.

Product Parameters

Product Models	Color	Brightness			Wave Length		Forward Voltage	Current	Reverse Voltage
Product Type	Color	Range	Typical Parameter	Binning	Range	Binning Range	VF	IF	VR
Product Type	Color	MIN-MAX(mcd)	TYP Data	Range	MIN-MAX(nm)	(nm)	MIN-MAX(V)	TYP(mA)	TYP(V)
JT-S2727OBHC		450-720	540	1.3	615-625	5	1.6-2.5	20	10
		950-1500	1100	1.3	517-530	3	2.2-3.6	20	10
		200-320	250	1.3	465-478	3	2.2-3.6	20	10
